Trek 2024 Domane+ AL 5

£2,287.50  £3,050.00

54
IN STOCK
Last 1 available
Part Number:

5270314

GTIN:

601842720363

The Domane+ AL 5 is a lightweight alloy e-road bike that delivers an authentic road bike feel with the benefit of an electric boost. The intuitive and natural-feeling HyDrive pedal assist system lets you keep pace with friends, crush hilly terrain or push yourself harder on training rides.

You want a high-value e-road bike that looks and rides like a traditional road bike. You're looking for a natural-feeling boost that adds extra capability to training rides and club rides.

A lightweight aluminium frame and fork, a natural-feeling HyDrive hub motor (250 W, 40 Nm) that assists up to 15.5 mph (25 km/h in Europe) with a 250 Wh battery for a range of up to 40 miles per charge when ridden in eco mode. Plus a workhorse Shimano 105 2x11 drivetrain, tubeless-ready wheels and vibration-absorbing Elite IsoZone handlebars.

The Domane+ AL's streamlined and discreet drive system lets you get more out of every ride. You get true road bike feel with the benefit of an extra boost when you want it.
- This e-road bike looks, rides and feels more like a traditional road bike
- The HyDrive pedal assist system has a hub motor for a more natural ride feel
- Easily change electric assist level with top-mounted controls and keep track of assist and battery levels with the top tube display.
- The stable Endurance Geometry delivers comfort and confidence
- Double your range with a 250 Wh plug-and-play Range Extender battery that sits in your bottle cage

Light, powerful, electric

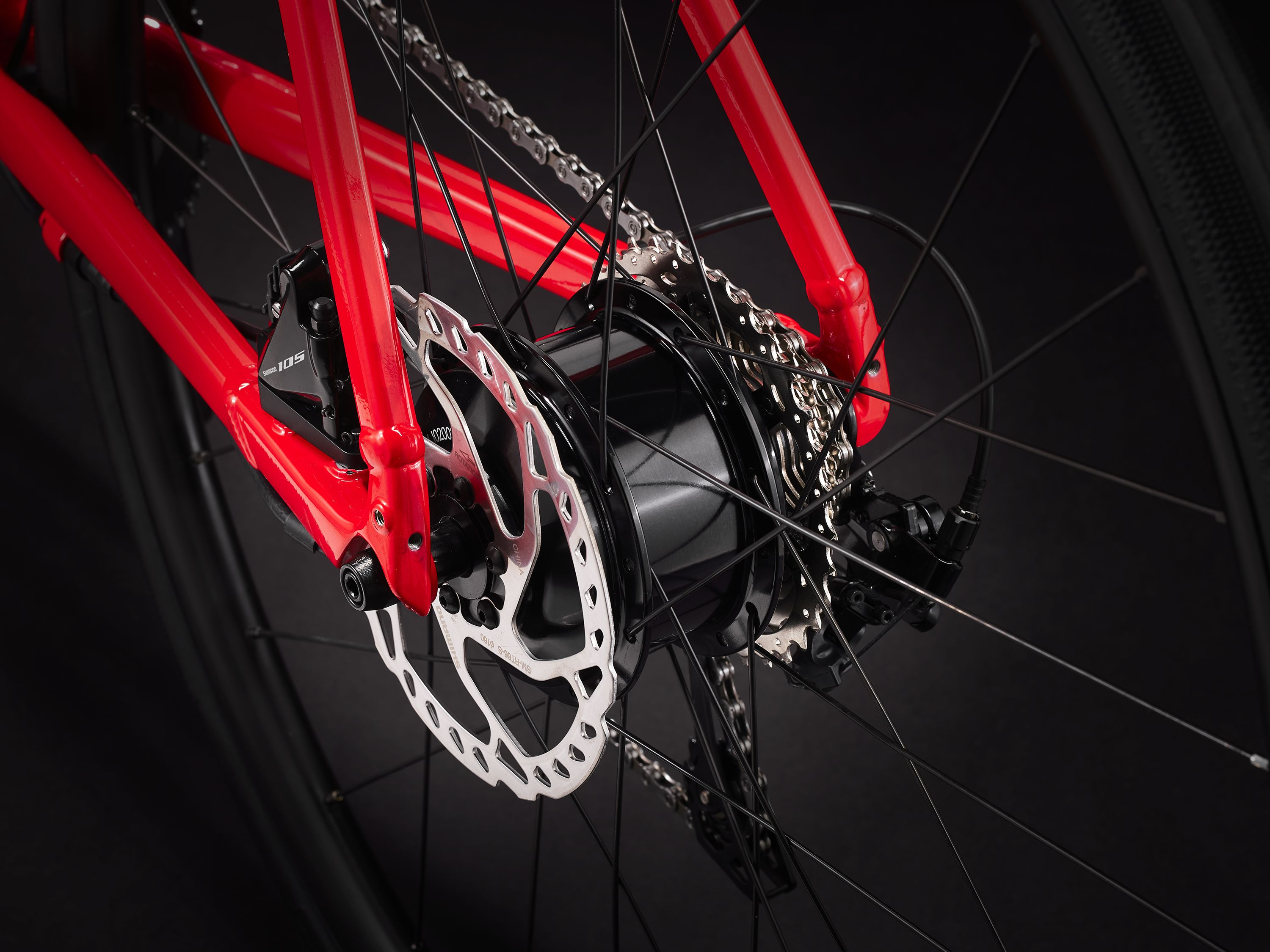

An integrated 250 Wh battery is hidden in the downtube and a powerful yet lightweight rear hub motor gives you that extra boost on the road.

Big tyres, big comfort
Clearance for 38 mm tyres boosts traction for better handling and makes for a comfortable ride on everything from smooth tarmac to light gravel.

Extend your ride
Double your range with an optional 250 Wh Range Extender that can expand your ride to an average of 80 mi/128 km in Eco mode.

Control in the palm of your hand
Easily toggle between the Domane+ AL's three assist modes without taking your hands off the bars using the intuitive top-mounted controls.

Shimano 105
With shift technology inherited from mechanical Ultegra and Dura-Ace, Shimano 105 gives you top-shelf shifting at a budget-friendly price. Whether you're commuting year-round or training for the big race, Shimano 105 is a workhorse drivetrain that won't hold you back as you grow in the sport.

Don't forget your pedals
This bike doesn't come with pedals because you'll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style. We recommend flats for versatility or clipless pedals for control and efficiency.

Frame Size 54, 100 Series Alpha Aluminium, hub drive system, tapered head tube, internal routing, flat-mount disc, rack and mudguard mounts
ForkDomane+ carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100 mm thru axle
Wheel SizeFront 700c / Rear 700c
WheelsBontrager Paradigm, Tubeless Ready, 28-hole, 21 mm width, Presta valve Formula RX-812 alloy, sealed bearing, 6-bolt, 100x12 mm thru axle Hyena hub drive motor, 40 Nm, 250 W
TyresBontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 mm
Battery250 Wh, integrated in down tube
Charger2A, 42V output, 100V–240V AC input
ShifterShimano 105 R7020, 11-speed // Shimano 105 R7020, 11-speed
Front DerailleurShimano 105 R7000, 31 mm clamp
Rear DerailleurShimano 105 R7000, long cage, 34T max cog
CrankFSA Vero Pro, 50/34, 172.5 mm Torque sensor, threaded, 110 mm spindle
CassetteShimano 105 HG700-11, 11-34, 11-speed
ChainShimano 105 HG601, 11-speed
Front BrakeShimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin Shimano RT66, 6-bolt, 160 mm Max brake rotor size
Rear BrakeShimano 105 hydraulic disc, BR-R7170 flat mount caliper, resin pad w/fin Shimano RT66, 6-bolt, 160 mm Max brake rotor size
HandlebarBontrager Elite IsoZone VR-SF, alloy, 31.8 mm, internal Di2 routing, 75 mm reach, 128 mm drop, 42 cm width
StemBontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length
SeatpostBontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
SaddleBontrager Verse Comp, steel rails, 145 mm width
Weight14.06 kg
Colours VIPER RED
Sizes 54
Brand Trek
Barcodes 601842720363
SKUs / Part Numbers 5270314

Please note: Manufacturers can sometimes change the specification of the products from time to time.
