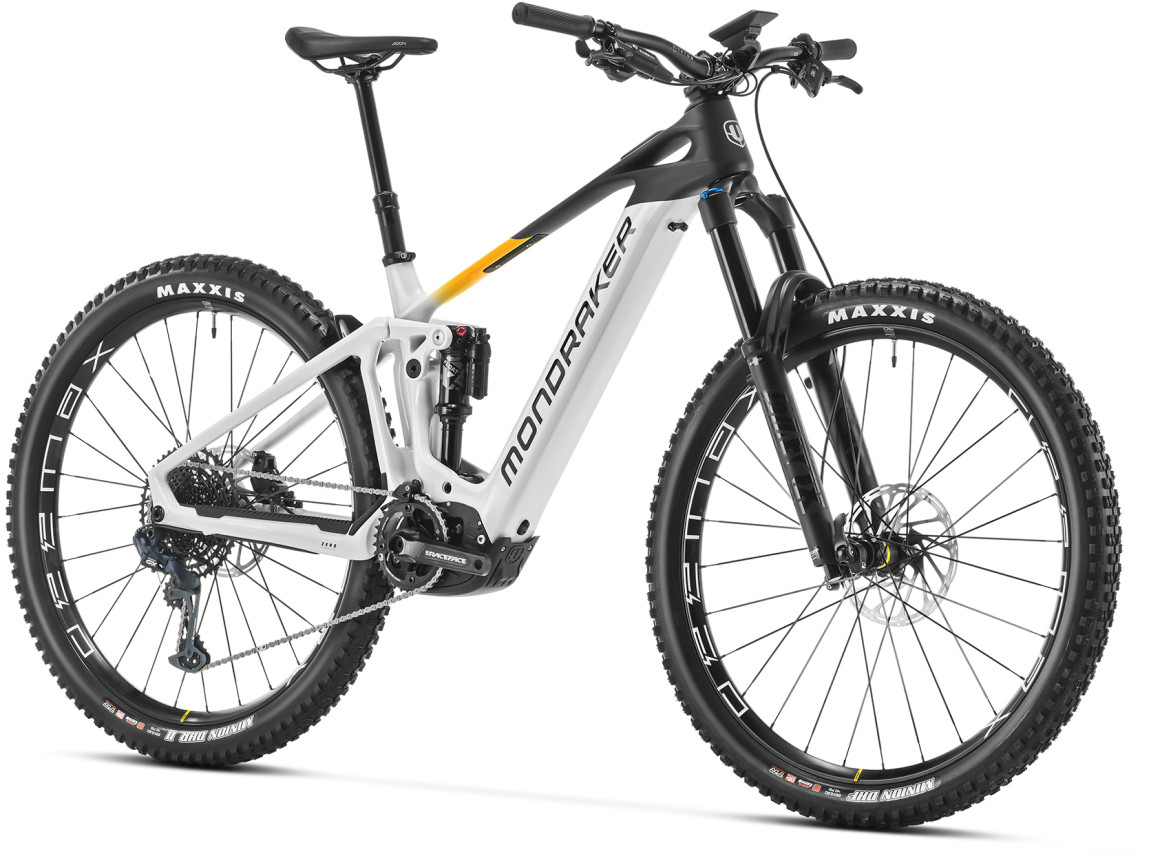

Mondraker CRAFTY CARBON R Desert Grey S, ENDURO/AM, 29
| Frame | Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. |
| Frame Sizes | S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
| Rear Shock | Fox Float-X LV Performance, 205x65mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Shock Settings | medium compression, medium rebound, air volume spacer 0.2 |
| Fork | Fox 38 29 Float GRIP Performance, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
| Headset | Acros custom for 1-1/2" head tube, angular contact bearingsΒ 40x52x7, Internal cable routing |
| Stem | Onoff Krypton FG 30mm, CNC, 31.8mm barbore |
| Handlebar | Onoff Krypton 1.0 double butted 7075-T6 alloy, rise: 20mm, width: 800mm, 9ΓΒΊ backsweep, 5ΓΒΊ upsweep, 31.8mm barbore |
| Grips | Onoff Desert, 1lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Saddle | FIZIK Terra Aidon X5 145mm |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | Sram DB8, tool reach adjust, lever pivot bushings |
| Rims | Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Spokes | Mavic J-bend double butted, contactless lacing |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| Front Tyre | Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Rear Tyre | Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
| Crankset | Race Face Aeffect ebike, 165mm |
| Chain Ring | Sram X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD |
| Chain | Sram NX Eagle, 12s, Powerlock |
| Rear Derrailleur | Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1 |
| Shifter | Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette | Sram PG-1230, 11-50T, 12s |
| Motor | Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM |
| Battery | Bosch Powertube 750Wh |
| Display | Bosch Kiox 500 / Bosch Mini Remote / Bosch System Controller |
| Derailleur Hanger | Sram UDH |
| Weight | 24,2 kg |
| Colours | Gray/Black/Yellow |
| Sizes | L, M, S, XL |
| Brand | Mondraker |
| Model Year | 2024 |
| Barcodes | 8435392860338, 8435392860345, 8435392860352, 8435392860369, 8435392879774, 8435392879781, 8435392879798, 8435392879804 |
| SKUs / Part Numbers | 010.23348, 010.23349, 010.23350, 010.23351, 010.24421, 010.24422, 010.24423, 010.24424 |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
