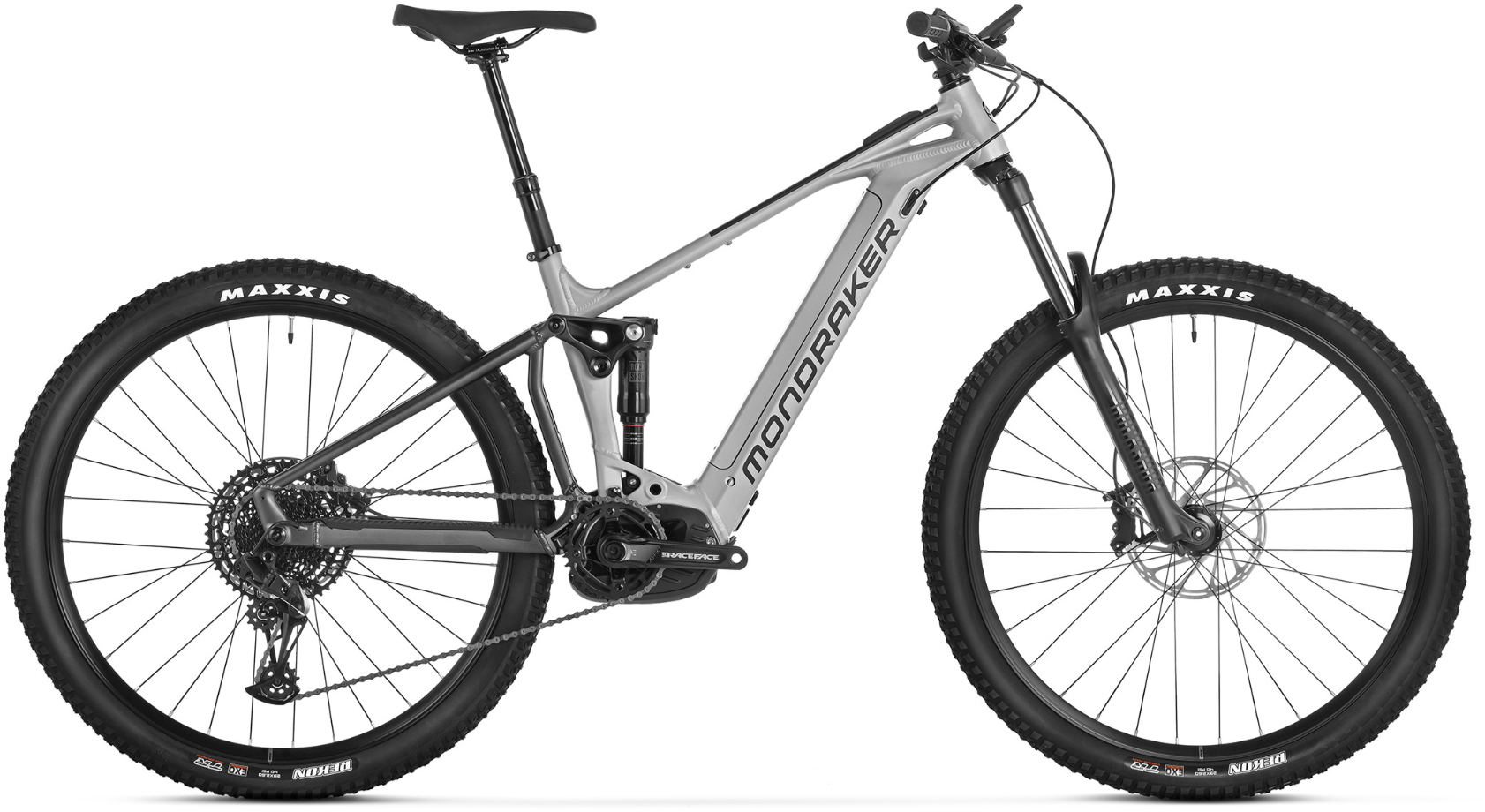

Mondraker CHASER Graphite S, ENDURO/AM, 29
| Frame | Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard |
| Frame Sizes | S: 380mm / M: 420mm / L: 450mm / XL: 490mm |
| Rear Shock | RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings |
| Shock Settings | Light compression, Linear rebound, 1 Token |
| Fork | RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload |
| Headset | Onoff Saturn tapered for 1-1/8†to 1-1/2†head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º |
| Stem | Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Grips | Onoff Twin, 1lock-on, 135mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Seatpost | Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm |
| Saddle | MDK ebike black |
| Front Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Rear Brake | Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads |
| Brake Lever | Sram DB8, tool reach adjust, lever pivot bushings |
| Rims | Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
| Spokes | Mavic J-bend double butted, contactless lacing |
| Front Hub | Mavic, Boost 15x110mm, IS 6 bolts |
| Rear Hub | Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, HG freehub |
| Front Tyre | Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Rear Tyre | Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead |
| Crankset | Race Face Aeffect ebike, 165mm |
| Chain Ring | Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD |
| Chain | Sram SX Eagle, 12s, Powerlock |
| Rear Derrailleur | Sram SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1 |
| Shifter | Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click |
| Cassette | Sram PG-1210, 11-50T, 12s |
| Motor | Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM |
| Battery | Bosch Powertube 625Wh |
| Display | Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller |
| Derailleur Hanger | Mondraker M068 |
| Weight | 25,4 kg |
| Colours | Blue/Black, Graphite/Black, Grey, Red/Black/Silver |
| Sizes | L, M, S, XL |
| Brand | Mondraker |
| Model Year | 2024 |
| Barcodes | 8435392859738, 8435392859745, 8435392859752, 8435392859769, 8435392859776, 8435392859783, 8435392859790, 8435392859806, 8435392879170, 8435392879187, 8435392879194, 8435392879200, 8435392879217, 8435392879224, 8435392879231, 8435392879248 |
| SKUs / Part Numbers | 010.23280, 010.23281, 010.23282, 010.23283, 010.23284, 010.23285, 010.23286, 010.23287, 010.24329, 010.24330, 010.24331, 010.24332, 010.24333, 010.24334, 010.24335, 010.24336 |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
