The 2026 Checkmate SLR 7 AXS ML MATTE HEX BLUE/PLASMA GREY PEARL is available at the following locations.
The item will be transferred to the location you choose during checkout.
If the item is not currently available to view at your desired location, please call your nearest store to arrange for it to be transferred.

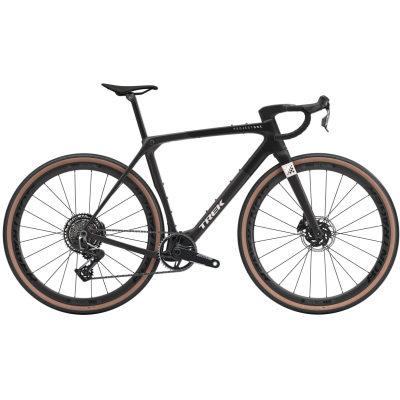

The Checkmate SLR 7 AXS is a carbon gravel race bike built to toe the line and kick up dust on the long and rough road. To deliver the performance that you crave on race day, the Checkmate combines a lightweight aero design with IsoSpeed and new Gravel Race geometry that keeps you poised for the attack without eating up your energy. It's topped off with a SRAM Force XPLR AXS E1 wireless drivetrain, carbon wheels and Trek Aero RSL bar/stem for a lightweight build. You want to test your mettle at gravel racing's most epic events. You need a bike that delivers aerodynamics and light weight, but not at the cost of your comfort. Performance matters to you, and you want workhorse components that you can trust, like a SRAM Force XPLR AXS wireless electronic drivetrain. A lightweight and aerodynamic 800 Series OCLV Carbon frame with IsoSpeed comfort technology and plenty of mounts to carry race-day essentials. Bontrager Aeolus Pro 3V carbon wheels and a Trek Aero RSL carbon bar/stem that keep your ride light and nimble. Plus, a SRAM Force XPLR AXS E1 drivetrain with wireless shifting that's built for rougher roads. If gravel race days are in your future, reach for Checkmate SLR 7 AXS. This lightweight gravel race rig is built to kick up dust on the long road, and deliver aero gains and comfort on the way. It combines new Gravel Race geometry with comfort-focused features, like IsoSpeed vibration-damping tech, to keep you at your prime from start to finish line.
| Frame | Size ML, 800 Series OCLV Carbon, IsoSpeed, hidden mudguard mounts, integrated frame bag mounts, RCS Headset System, invisible cable routing, T47, flat-mount disc, integrated chainkeeper, removable FD hanger, UDH, 142x12 mm chamfered thru axle |
| Fork | Checkmate SLR full carbon, tapered carbon steerer, hidden mudguard mounts, flat-mount disc, 12x100 mm thru axle Checkmate SLR full carbon, tapered carbon steerer, hidden fender mounts, flat mount disc, 12x100mm thru |
| Wheel Size | Front 700c / Rear 700c |
| Wheels | Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, SRAM XD-R driver, 142x12 mm thru axle |
| Tyres | Bontrager Girona RSL, Tubeless Ready, GR puncture protection, aramid bead, 220 tpi, 700x42 mm |
| Shifter | SRAM Force AXS E1 // SRAM Force AXS E1 SRAM Force AXS E1 // SRAM Force AXS E1 |
| Rear Derailleur | SRAM Force XPLR AXS, 46T max cog |
| Crank | SRAM Force XPLR with AXS Power Meter, 42T, DUB Wide, 170 mm length SRAM DUB Wide, T47 threaded, internal bearing |
| Cassette | SRAM Force XPLR XG-1371, 10-46, 13-speed |
| Chain | SRAM Force E1, 12/13-speed |
| Front Brake | SRAM Paceline X, rounded, CentreLock, 160 mm Max brake rotor size |
| Rear Brake | SRAM Paceline X, rounded, CentreLock, 160 mm Max brake rotor size |
| Handlebar | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drop width, 100 mm stem length |
| Seatpost | KVF aero carbon seat post, 5 mm offset, 280 mm length |
| Weight | 8.47 kg |
| Colours | ERA WHITE/BUFF BEIGE, GLOSS TREK BLACK/MATTE CARBON SMOKE, MATTE HEX BLUE/PLASMA GREY PEARL, OLIVE DRAB/GLOWSTICK |
| Sizes | L, M, ML, S, XL, XS |
| Brand | Trek |
| Model Year | 2026 |
| Barcodes | 197216247982, 197216247999, 197216248002, 197216248019, 197216248026, 197216248033, 197216248040, 197216248057, 197216248064, 197216248071, 197216248088, 197216248095, 197216248101, 197216248118, 197216248125, 197216248132, 197216248149, 197216248156, 197216248163, 197216248170, 197216248187, 197216248194, 197216248200, 197216248217 |
| SKUs / Part Numbers | 5339991, 5339992, 5339993, 5339994, 5339995, 5339996, 5339997, 5339998, 5339999, 5340000, 5340001, 5340002, 5340003, 5340004, 5340005, 5340006, 5340007, 5340008, 5340009, 5340010, 5340011, 5340012, 5340013, 5340014 |
Please note: Manufacturers can sometimes change the specification of the products from time to time.
